Q. Does PF-Diagnose work in Windows 7?

A. Yes.  PF-Diagnose has been installed and tested with Windows 7 Professional and Ultimate In some cases you may need to Take Ownership or run as Administrator by right clicking on the icon and selecting this option in the Compatibility menu.  You can email support for links to various Windows 7 tools that aid in running Windows XP software in a Windows 7 environment and avoid issues with the UAC (User Access Control).  Some third party drivers have issues and they will be noted here as they become apparent.  PF-Diagnose is a 32bit program and has been tested in 64bit windows environments.  If you use a USB-Serial adapter, you will need to update the drivers.  See FAQ below

If you get Database not specified and no default errors when running PF-Diagnose, your 64bit Windows Data Base Driver does not have a 32bit port and you will need to resolve this by adding the proper updates from Microsoft.

Back to top

Q. I have Windows 7 and my Serial to USB adapter is not recognized, What now?

Do not use the Serial to USB Adapter if your Laptop already has a serial port for COM1 and or COM2, use the built-in ports instead.

A. You need to update the drivers.  You can look for the flag icon and select the proper link and Windows 7 will try to find the drivers for you and explain how to correct the problem.  In Most cases you need to install the Prolific driver

DOWNLOAD THE CORRECT DRIVER

Windows 7

Windows XP 64 bit

Windows XP

Windows Vista

Install the driver

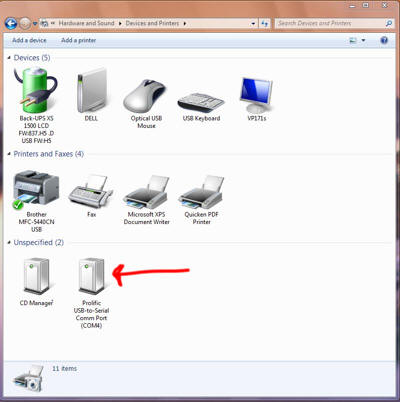

You should see the following when done

The default COM port after the install is usually COM 4 or 5, most Datalink adapters will not accept this , you can change the COM port setting in the Control Panel under Printers and Devices.  The com port speed and protocol should be the default

Note that in Windows 7 you need to select Change Settings first before you select Properties and Advanced or you may  get a message that you do not have permission to change registry settings...

For more information, please consult Windows 7 Help or continue reading.

1. DOWNLOAD DRIVER  <- by clicking the link
2. Install Driver (Follow Driver instructions)
3. Plug in the Serial to USB adapter to the USB port you will be using with PF-Diagnose before setting up

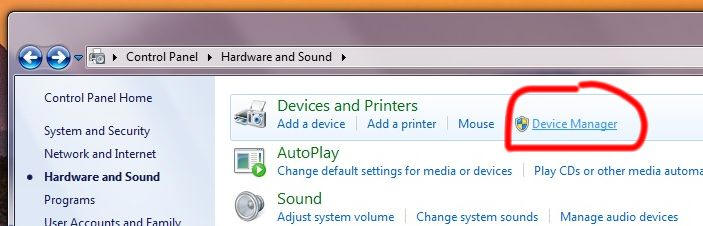

1. open Control Panel and select Hardware and Sound then Device Manager
2. Under Ports (COM & LPT) Select Prolific Serial to USB Adapter
3. Go to Port Settings and Select ADVANCED like shown above blue button

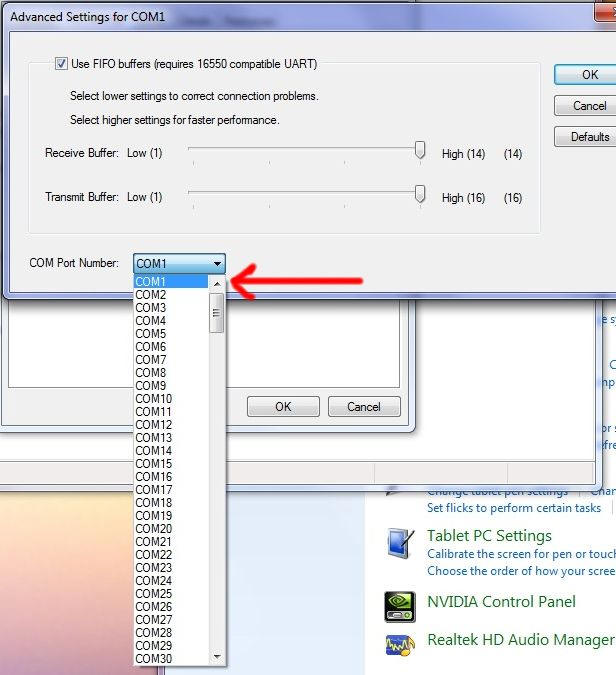

4. Select COM and change to COM 1 like shown below
5. Select OK and exit

Back to top

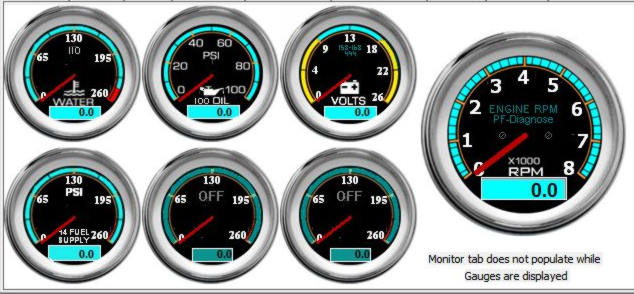

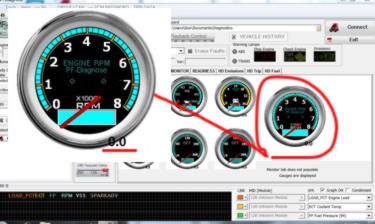

Q. My Screen looks funny, why are the gauge needles and numbers outside the boxes?

With Windows 7, you can change the screen font size and this affects the display of PF-Diagnose.  You need to set the screen font size to NORMAL in the control panel, this can be done in 4 easy steps shown below.

Step 1

Open the control Panel and select Appearance

Step 2

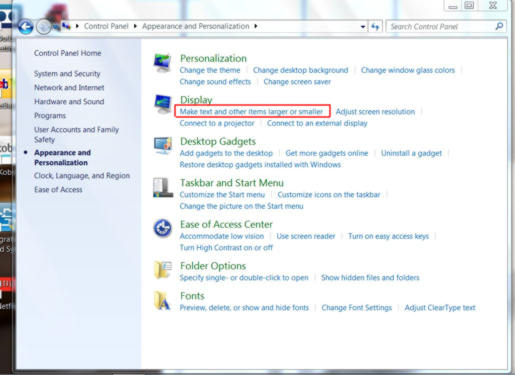

Select Display - Make Text larger or smaller

Step 3

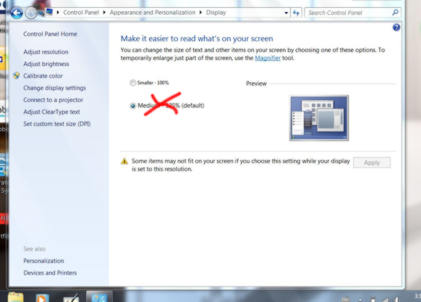

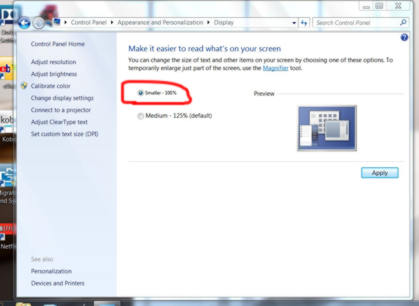

Select the 100% option

Step 4

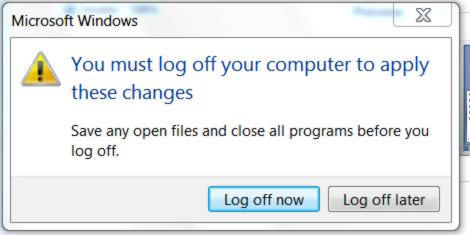

You will have to log off and log back in to change your personal settings

When you restart PF-Diagnose, the needles should now be centered.
